Ensuring a reliable power supply is critical for homes and businesses. However, interruptions and disturbances in the power supply can disrupt operations and damage equipment. This is where power quality equipment plays an important role in keeping power supplies clean and reliable. This article explores the various types of power quality equipment available and how they help maintain and improve power quality.
Power Conditioners
One of the most common types of power quality equipment is power conditioners. Power conditioners help filter out disturbances in the power supply to provide clean, regulated power. They come in various forms such as:
– UPS (Uninterruptible Power Supply): Considered the most essential power quality equipment, UPS systems provide backup power during outages through battery backup. They also filter power to protect against spikes, sags, and noise. UPS systems are widely used to safeguard critical equipment and operations from power disturbances.
– Line Conditioners: Also known as power stabilizers, line conditioners help regulate voltage levels by absorbing voltage sags and swells. They are useful for residential and commercial applications to keep equipment running safely within voltage tolerances.
– Power Regulators: As the name suggests, power regulators are designed specifically to regulate voltage levels. They constantly monitor and adjust the output voltage to very precise tolerances, making them ideal for sensitive electronics that require tightly regulated power.
– Surge Protectors: Surges or spikes in voltage pose a serious threat to equipment. Surge protectors have metal-oxide varistors (MOVs) that act as a voltage clamp to divert surges to ground, protecting connected equipment. Whole home and commercial surge protectors safeguard entire power systems.
Harmonics Filters
Another major category of Power Quality Equipment is harmonics filters. These help mitigate the effects of harmonics present in power systems, which can negatively impact equipment. Some common harmonics filters include:
– Active Harmonics Filters: These utilize electronics controls and switching technology to detect and cancel harmonics in real-time. They provide one of the most effective harmonics solutions.
– Passive Harmonics Filters: Consisting of various inductors and capacitors in filter circuits, passive filters aim to block the flow of specific harmonic frequencies. While cheaper than active filters, passive filters require careful tuning.
– Hybrid Harmonics Filters: A combination of active and passive filtering approaches, hybrid filters leverage the strengths of both to filter a broad spectrum of harmonics efficiently.
Power Monitoring Equipment
To analyze power quality issues, it is important to monitor the power system. Power monitoring equipment includes:

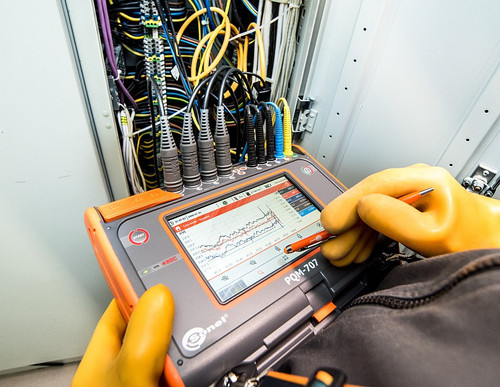

– Power Quality Meters: These handheld meters provide snapshot readings of various power quality parameters like voltage, current, power factor, harmonics etc. Advanced meters can record events over time.
– Power Monitoring Devices: Permanently installed to monitor critical feeders or loads, these devices continuously track all relevant power parameters digitally through communication ports. Data can be analyzed remotely.
– Data Loggers: Capable of long term, high resolution recording, data loggers are often used to troubleshoot intermittent power quality issues by storing detailed waveform data over extended periods for later review.
Importance of Power Quality Equipment
As more electronics and sensitive loads are added to commercial facilities and homes, maintaining power quality is critical to system reliability and equipment longevity. Power quality equipment plays a vital role in:
– Protecting Critical Loads: Ensuring consistent power for equipment like servers, medical devices, industrial controls that cannot tolerate deviations.
– Reducing Downtime & Costs: By preventing equipment damage from disturbances, power quality gear safeguards operations continuity and avoids expensive repairs or lost productivity during outages.
– Meeting Regulations: Standards like IEEE-519 mandate limiting harmonic levels to grids. Harmonics filters help comply with such regulations to avoid penalties.
– Future-Proofing Operations: With increased use of nonlinear loads, the need for clean power will grow. Investing in quality power protection equips facilities to support changing power needs.
Choosing Solutions
Selecting the right power quality equipment involves proper evaluation of the application, sensitivity of loads, budget, and expected payback period. Consulting power quality experts helps identify the exact requirements to choose tailored solutions from the wide product options available in the market. With diligent installation and periodic maintenance, power quality equipment ensures reliable power for critical operations for years to come.
In summary, from UPS to filters, meters and more, power quality equipment plays a vital unsung role behind the scenes to maintain reliable power supplies. By protecting against disturbances and regulating voltage/harmonics, such gear safeguards sensitive electronics and operations continuity. For any organization dependent on a continuous power supply, making the right investments in power quality solutions delivers significant peace of mind and returns in the long run.
