Over the past few decades, the demand for high speed data communication has increased exponentially driven by the growth of internet usage, social media, video streaming etc. Traditional copper cabling infrastructure is reaching its bandwidth limits to support this ever increasing data needs. Optical fibers with its incredibly high bandwidth capability have emerged as the preferred medium for long distance, high speed data transmission. Optical transceiver is a critical component that enables transmission of data through optical fibers. Let us understand in detail about optical transceivers and their role in modern communication networks.
What is an optical transceiver?

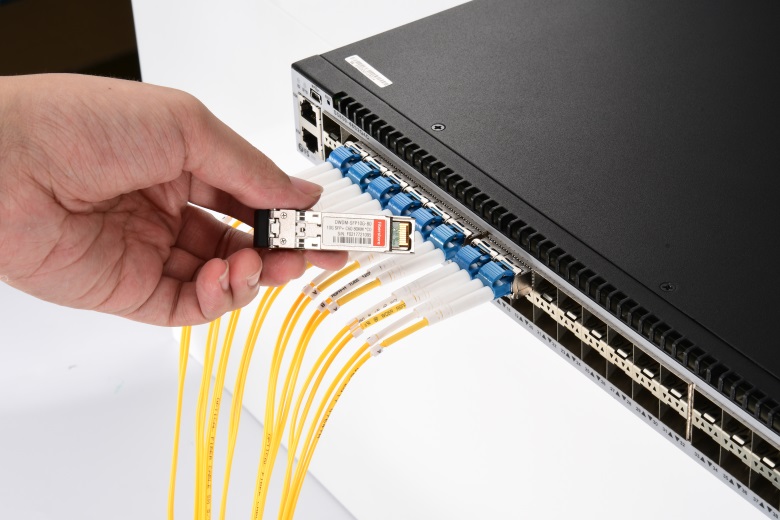

An Optical Transceiver is a modular device that contains both a transmitter and receiver in a single package. The transmitter converts electronic signals into optical signals by switching an LED or laser diode on and off at a very high speed. The optical signals are transmitted through the optical fiber. At the receiving end, the receiver photo-diode converts the received optical signals back into electronic form.
Depending on the type of fiber connectors and data rates supported, there are multiple form factors of optical transceivers like SFP, SFP+, QSFP, QSFP+, OSFP etc. They provide an industry standard interface that plugs directly into fiber optic ports on network switches, routers and servers. This modularity allows easy upgrades and replacement of transceivers as per network requirements.
Role of optical transceivers in modern networks
Optical transceivers play a pivotal role in enabling high speed data transmission through optical fiber cables in modern communication networks. Some of the key applications of optical transceivers include:
– Data Centers: Majority of server-to-server, server-to-storage and server interconnects in large hyperscale data centers now rely on optical transceivers. They support 100GbE, 400GbE and higher networking speeds that are critical to handle huge data volumes processed every day.
– Telecommunications: Optical transceivers are extensively used in carrier ethernet networks and metro/long haul connections between central offices. They allow Internet service providers (ISPs) to rapidly scale up network capacities and offer high speed broadband services.
– Enterprise Networks: For connecting multiple buildings within an enterprise campus, optical fibers with high speed transceivers have become the preferred medium over traditional copper cabling. This improves network performance and supports shifting workloads to the cloud.
– 5G Networks:emerging 5G infrastructure relies heavily on fiber optic connections between cell towers, centralized units and core network elements. Transceivers support multi-Gbps speeds required for 5G backhaul and fronthaul networking.
– Undersea Cables: Trans-oceanic undersea cables use dense wavelength division multiplexing (DWDM) technology and transceivers rated for thousands of kilometers to transmit massive data volumes between continents at lightning speeds.
Standards and technologies behind optical transceivers
For optical transceivers to interoperate seamlessly across different network equipment from various vendors, standards play a very important role. Some of the key industry standards are:
– SFF (Small Form Factor) Committee: Develops mechanical, electrical and thermal specifications for various transceiver form factors like SFP, SFP+, QSFP etc.
– Ethernet Interconnect: Defines speeds like 100GbE, 400GbE, 800GbE and electrical/optical interface specifications for servers and switches.
– Optical Internetworking Forum (OIF): Develops implementation agreement for coherent DWDM, interoperable framing and software interfaces for long haul networks.
On the technology front, continuous advances have increased transceiver speeds and densities dramatically. Some transformative technologies adopted are:
– Digital Signal Processing (DSP): Sophisticated DSP chips allow compensation of signal impairments during long haul transmission.
– Coherent Optics: Enables super high speeds like 400GbE by precisely manipulating both amplitude and phase of optical signals.
– Silicon Photonics: Integration of laser diodes, modulators, detectors on a silicon chip has significantly reduced transceiver sizes and costs.
– Multi-Level signaling: New modulation techniques like PAM4 increase throughput within same bandwidth by adding additional intensity levels.
– 400ZR/600ZR: New coherent standards targeting 400km, 600km reach at 400Gbps to address increasing bandwidth demands.
Role of optical transceivers is set to grow exponentially in the coming years as bandwidth intensive next generation technologies like 8K video, VR/AR, autonomous vehicles put unprecedented stress on telecom networks. Advancements in semiconductor integration, new modulation techniques and seamless interoperability standards will make optical communications even more pervasive and ubiquitous in the digital era. Optical transceivers are critical to support high speed data pathways – the lifeblood of the connected world.
