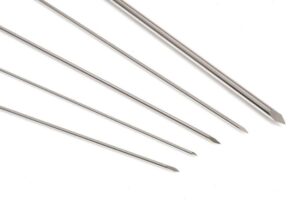

Kirschner wires, also known as K-wires, are thin metallic wires that are used in orthopedic surgery. They are usually made of stainless steel or titanium and come in different diameters ranging from 0.045 inches to 0.160 inches. K-wires work by providing enough strength to hold together fractured or broken bones allowing them to heal properly.
Uses of Kirschner Wires
K-wires have many applications in orthopedic surgery due to their versatility. Some of the common uses of K-wires include:
Fixation of Fractures
K-wires are often used to fix fractures, especially of small bones in hands, feet and facial bones. They are inserted percutaneously across the fracture site to provide stabilization until the bones heal. This allows early mobilization of the injured part.
Repair of Tendons and Ligaments
K-wires help in repair of ruptured tendons and ligaments by holding torn pieces together. They are inserted at the end of repaired tendons/ligaments and anchored in bones. This allows good fixation until soft tissues heal completely.
Joint Arthrodesis
Arthrodesis is a procedure done to fuse together bones of a joint. K-wires are used along with bone grafts to fuse joints like fingers, ankle, etc. that have been severely damaged.
Bone Lengthening and Deformity Correction
In conditions like limb length discrepancy and angular deformities, K-wires help provide fixation during bone distraction procedures and corrective osteotomies.
Fracture Management
They are also used for percutaneous fixation of fractures, guiding pins for insertion of plates and screws and temporary fixation of external fixation frames.
Advantages of Kirschner Wires
Some key advantages of using K-wires include:
– Versatility: As discussed, K-wires have applications across different orthopedic procedures due to their shape and strength.
– Minimal Invasiveness: Being thin wires, K-wires allow percutaneous fixation of fractures and injuries without extensive soft tissue dissection.
– Early Mobilization: K-wire fixation enables early mobilization and weight bearing compared to casts. This speeds up recovery.
– Cost-Effectiveness: K-wires are relatively inexpensive implant devices.
– Removable: Most of the time, K-wires are removed once adequate bone and soft tissue healing occurs, to prevent long term complications.
Surgical Technique of Inserting K-wires
Here are the basic steps to insert K-wires surgically:
– After reducing the fracture/dislocation and proper positioning of bone fragments under image guidance, entry and exit points are marked on the skin.
– Small stab incisions are made at these points using a no.11 blade. Penetration is made down to the bone with a pointed hemostat or awl.
– K-wire is picked up with an artery forceps and inserted through the entry point while maintaining proper reduction and alignment under imaging.
– It is passed across the fracture/repair site with gentle tapping if needed and made to exit at the pre-marked point.
– The wire ends are cut leaving about 1cm projecting out on both sides and wrapped with sterile dressing.
– Post procedure radiographs are taken to assess reduction and wire positioning.
Potential Complications of Kirschner Wires
Like any foreign implants, K-wires too may lead to some complications if not placed and managed carefully. These include:
– Infection: Deep or superficial infection can set in around K-wire entry points.
– Migration: K-wires can migrate out of place especially in small bones of hands and feet.
– Pinsite Problems: Issues like paresthesia, complex regional pain syndrome, rupture of tendon can occur due to pinsite.
– Non-Union: Infected or poorly positioned K-wires can interfere with bone healing leading to non-union.
– Breakage: Thin K-wires, especially those of small diameter, are prone to mechanical failure and breakage.
– Arterial/Nerve Injury: Major vessels and nerves can get injured during improper wire insertion.
Therefore, utmost care is necessary during insertion and removal of K-wires to avoid potential pitfalls. Postoperative monitoring also plays a key role.
Conclusion
In conclusion, Kirschner wires serve as a simple yet versatile tool that has wide ranging applications in orthopedic surgery. Their thin profile enables minimally invasive techniques while providing adequate fixation strength for fractures, injuries and procedures. With proper surgical skill and postoperative care, K-wires helps orthopedists effectively manage many musculoskeletal conditions. Although there are potential risks, K-wires continue to be reliably used the worldwide due to their advantages.
