What are Intumescent Coatings?
Intumescent layers are thin film coatings that contain substances which expand into an insulating charred layer when exposed to heat or flame. The term “intumescent” comes from the Latin words “intumescere” meaning to swell up and “escere” meaning to grow or increase in size. When exposed to heat or fire, the coating reacts and causes the surface to swell up to many times its original thickness forming a thermally insulating char layer which protects the substrate from fire and heat exposure.
Composition of Intumescent Coatings
Most intumescent layers contain three key components – an acid source, a carbon source and a spumific. The acid source usually consists of compounds like ammonium polyphosphate or amino acid salts which serve to catalyze the charring process. The carbon source is made up of compounds like pentaerythritol or melamine which leave behind a carbon rich char. The spumific or blowing agent is typically a metal salt which produces non-flammable gases upon decomposition helping the char to expand and form an insulating foam-like layer. When heat is applied, the acid source catalyzes the reactions between the carbon source and spumific causing the Intumescent Coatings to swell up into an expanded char.
Fire Resistance Properties
One of the key benefits of intumescent layers is their ability to provide fire resistance even with a very thin film layer. The expansion and charring phenomenon allows a coating just 1-3mm thick to insulate a substrate for up to 120 minutes or more depending on the formulation. When exposed to flames or temperatures over 200°C, the coating reacts transforming into an insulating foam-like char of up to 50 times its original thickness.
This expanded char acts as a heat sink drawing heat from the substrate surface and preventing ignition. It also provides a barrier against smoke, flame and heat propagation. Intumescent layers have been tested to protect structural steel achieving fire resistance ratings up to 4 hours as per standards like EN 13381 and UL 263. Their flexibility, durability and ease of application makes them an ideal alternative to traditional fireproofing methods like drywall encasement.
Applications of Intumescent layers
Given their excellent fire resistant abilities, intumescent layers find wide usage across different industries for passive fire protection applications.
Structural Steel Protection: One of the most common uses is protecting structural steel elements like beams, columns and joists which form the load bearing framework of buildings. This allows steel to be used cost effectively in high rise construction meeting code mandated fire resistance requirements.
HVAC Ducting: Heating, ventilation and air conditioning ducts transport air throughout buildings and need fire protection to prevent the spread of smoke and flames through the duct network. Intumescent layers provide an effective barrier.
Cable And Pipe Protection: Electrical cables, data cables, plastic pipes conveying fluids or gases are all at risk of failure or releasing toxic fumes during a fire. Intumescent layers can protect these critical building services components.
Marine And Offshore: On ships, offshore oil rigs and other marine structures, intumescent layers protect the steel superstructure and help maintain compartmentalization in case of fire.
Transportation: Railcars, trucks, aircraft and other vehicles use intumescent layers to fireproof areas prone to fuel or electrical fires enhancing passenger safety.
Advantages Over Other Methods
Compared To Traditional Fireproofing Methods Like Gypsum Or Cementitious Boards, Intumescent Layers Offer Several Advantages:
– Thinner application – As little as 1-3mm thick coatings provide the required fire resistance. This conserves space.

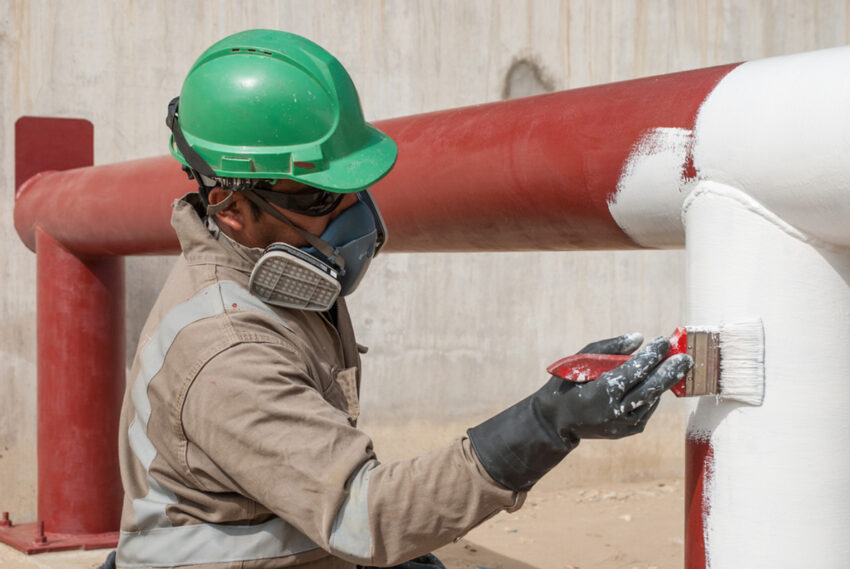

– Easy installation – The coatings can be sprayed, brushed or rolled on offering faster application than rigid encasement systems.
– Durable yet flexible – Intumescent layers stretch and flex with the substrate without cracking unlike brittle drywall sheets.
– Damage resistance – Minor surface damage does not affect the fire resistance unlike with boards which need full integrity.
– Moisture resistance – Intumescent layers are unaffected by high humidity unlike gypsum boards prone to swelling.
– Cost effective – Theirthin film application and labor savings during installation reduce total costs versus drywall systems.
Challenges in Development
While widely adopted, intumescent technology continues evolving to meet new performance requirements. Some challenges include developing:
– Coatings certified for higher fire resistance ratings of 3-4 hours and beyond as needed in some
projects.
– Formulations tolerant to substrate temperatures over 300°C to protect against jet fires and pool fires.
– Improved adhesion to complex substrate shapes, especially in marine/offshore applications prone to corrosion.
– More environment friendly compositions reducing reliance on halogenated or phosphate based components.
– Dual intumescent/insulating coatings that rapidly expand on exposure followed by long term insulation.
– Intelligent coatings with sensors to monitor integrity and notify in case of damage requiring repair.
Overall, With the push for more fire safe and sustainable construction practices, intumescent layers present a promising innovation over traditional fire protection methods. Manufacturers are continually enhancing coating chemistries to meet evolving codes and address new application areas. Their combination of thin-film flexibility, durability and effectiveness will see intumescent layers play an ever increasing role globally in enhancing building and infrastructure fire safety through passive means. With continued technological progress, these smart coating systems have the potential to revolutionize fire engineering.
