Introduction
The transmission system is one of the most crucial components in any automobile. It is the link between the engine and the wheels that allows the vehicle to move. Modern automobiles come equipped with sophisticated automatic and manual transmission systems to provide drivers with a comfortable and fuel-efficient driving experience. In this article, we will explore the different types of transmission systems used in cars today along with their functions and recent technological advancements.
Types of Transmission Systems
There are primarily two types of transmission systems used in modern passenger vehicles – manual transmission and automatic transmission.
Manual Transmission
A manual transmission, also known as a stick shift, requires the driver to physically press clutch pedal to change gears using a gearstick. This allows the driver to select optimum gear ratios suitable for various driving conditions like acceleration, cruising or braking. Though manual transmissions are less complex than automatics, require less maintenance and offer better fuel efficiency, controlling clutch and gears simultaneously can be challenging for some drivers especially in heavy traffic conditions. Despite the rise in popularity of automatics, many enthusiasts still prefer manual transmissions for its engaging driving dynamics.
Automatic Transmission

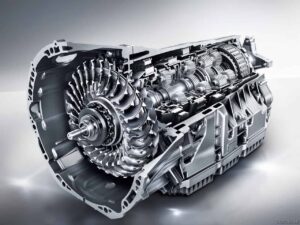

An automatic transmission system automates the gear selection process eliminating the need for a clutch pedal. It uses a hydraulic torque converter and complex planetary gear sets controlled by valves and sensors to shift gears automatically based on engine rpm, vehicle speed and driver input. This provides a convenient and effortless driving experience especially useful in cities. However, automatic transmissions tend to be heavier, more complex and less fuel efficient compared to manual counterparts. Many modern automatics are aiming to provide the fuel savings and driver control of manuals with technologies like dual-clutch transmissions and automatic manual transmissions.
Components and Operation of Transmission Systems
Whether manual or automatic, all transmission systems have common components that work in collaboration to transfer power from the engine to the wheels.
Gears – Conical toothed wheels of different sizes that change the rotational speed and torque delivered to the output shaft. Larger gears provide lower speed and higher torque for acceleration while smaller gears provide higher speed for cruising.
Shafts – Hollow tubes that transmit rotational motion within the transmission. The main shafts are the input shaft connected to the engine and the output shaft connected to the rear axle.
Clutch – A friction plate that temporarily connects or disconnects the engine and transmission. In manuals, clutch disengages power during gear shifts while in automatics torque converter serves similar function.
Differential – It allows the outer wheel to rotate faster than inner wheel during turns thereby reducing stress on drive components. The differential receives input from the transmission and splits drive equally to left and right wheels.
In a manual transmission, gear shifts occur by disengaging the clutch, selecting the desired gear using the gear stick, and engaging the clutch again. Automatic transmissions have complex hydraulically-controlled planetary gear sets and torque converters that shift gears seamlessly based on sensors monitoring vehicle parameters.
Advancements and Future Trends
Technological advancements are constantly evolving automotive transmission systems to provide better performance, higher efficiencies and added convenience to drivers. Some key developments include:
Dual-Clutch Transmissions
Dual-clutch automatic transmissions use two separate clutches and gear packs that alternate shifting duties providing lightning quick gearshifts rivalling manuals. They are becoming increasingly popular in performance cars.
Continuously Variable Transmissions
CVTs provide an infinite number of gear ratios rather than fixed gears using a metal belt or chain riding on two pulleys that can change their diameter. Though efficient, earlier CVTs lacked the driving feel of traditional automatics. Newer designs are improving performance.
Automatic Manual Transmissions
Also known as robotized manuals, they use an automated clutch and shifter controlled by sensors for fast and smooth gear changes in a manual transmission setup giving the best of both automatic and manual worlds.
Electric Transmissions
With increasing electrification of vehicles, fully electric transmissions are being developed that eliminate mechanical connections by directly coupling electric motors to wheels through power electronics. This paves the way for advanced all-electric and hybrid powertrains of the future.
While innovation will continue, the tried-and-true manual and automatic transmission configurations will remain dominant for the foreseeable future. Technologies like dual-clutch autos, automated manuals and electrified solutions aim to elevate the driving experience to new levels of driver engagement, refinement and environmental friendliness. The spark of human ingenuity will keep transmission systems evolving for generations to come.
Conclusion
In summary, automatic transmission system have come a long way from the early single-gear transmissions to today’s sophisticated automatic and dual-clutch configurations. Their role remains fundamental in linking the engine’s power to the wheels. Continuous developments focus on advancing performance, comfort and sustainability. Going forward, transmission technology will remain at the forefront of automotive innovation propelling vehicles and mobility into new realms.
