Brakes are one of the most important safety systems in any vehicle. The brake system works to slow down or bring the vehicle to a complete stop and prevents accidents from occurring. Modern vehicles come equipped with advanced brake systems for improved safety and performance. Let’s take a closer look at how the automotive brake system works.
The Basic Components
All brake systems have a few core components that work together to stop the vehicle. The main components include brake pedal, master cylinder, brake lines, calipers, rotors/drums, and pads/shoes.
– Brake Pedal: The Automotive Brake System pedal is what the driver presses to activate the braking system. Pressing down on the pedal applies pressure in the master cylinder.
– Master Cylinder: The master cylinder is a hydraulic cylinder located under the hood near the brake pedal. It contains brake fluid and a piston connected to the brake pedal. Pressing the pedal pushes the piston inside the master cylinder which increases the brake fluid pressure.
– Brake Lines: A network of metal brake lines carries the pressurized brake fluid from the master cylinder to each wheel. They ensure equal fluid pressure reaches all brake calipers/wheel cylinders.
– Calipers: Calipers are cylinder-shaped structures located near each wheel. When pressure reaches them via brake lines, calipers squeeze and push the brake pads inward against the rotors to slow the wheels down.

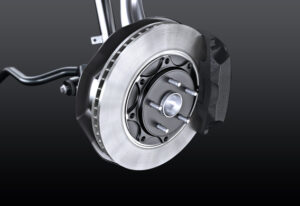

– Rotors/Drums: Rotors are spinning metal discs attached to each wheel hub whereas drums are cylindrical parts located inside the wheels. Pads/shoes rub against rotors/drums to generate friction that causes braking force.
Making Brakes Work
When the driver depresses the brake pedal, the piston inside the master cylinder pushes brake fluid through the lines towards the calipers. The fluid exerts pressure on the calipers, causing them to squeeze the brake pads against the rotors with great force.
The friction generated between the rotors and pads converts kinetic (motion) energy of the spinning wheels into heat energy, slowing down the wheels’ rotation. As wheels slow down and stop, they help decelerate and stop the vehicle. This entire process happens within fractions of a second to execute braking commands precisely.
Types of Brake Systems
Modern vehicles employ different types of brake systems for improved performance and safety characteristics. Some common types include:
– Disc Brakes: Most vehicles today use disc brakes which utilize brake calipers, rotors, and pads as described earlier. They offer great stopping power even in wet conditions.
– Drum Brakes: Popular in older vehicles, drum brakes use brake shoes that clamp inside rotating brake drums to cause friction braking. They require more pedal force but provide sufficient stopping.
– Anti-lock Braking System (ABS): ABS sensors detect wheel locks during heavy braking. It pumps the brakes rapidly to prevent wheel locks and maintain steering control for safer braking on slippery surfaces.
– Electronic Brakeforce Distribution (EBD): EBD automatically varies brake pressure between front and rear axles depending on load to ensure optimum braking balance for stability during stops.
– Brake Assist System (BAS): BAS identifies emergency braking quicker than human response. It instantly applies maximum braking force to slash vehicle stopping distance in panic situations.
– Traction Control System (TCS): TCS comes into play when accelerating from a complete stop on low traction surfaces. It regulates engine power and applies brakes selectively to individual wheels for clean traction and launch.
All modern brake systems incorporate technologies like ABS, EBD, BAS, and TCS to deliver unmatched braking precision, shorter stopping distances, and fool-proof stability even in harsh road or weather conditions. No wonder effective braking is crucial to road safety.
Maintaining Optimal Braking Performance
Even with advanced components, brake systems need proper care and scheduled inspections for maintaining optimal braking efficiency and safety. Here are some best practices:
– Check brake fluid level regularly and change every 1-2 years or as instructed in owner’s manual. Low fluid affects braking distance.
– Inspect rotors and pads/shoes for uneven wear patterns as this indicates issues like sticking calipers. Replace worn components in pairs.
– Bleed the brake lines every 1-2 years or when replacing fluids/components. Air bubbles reduce braking force.
– Follow all maintenance schedules outlined by manufacturer. Neglected brakes suddenly fail in emergencies.
– Check brake hoses/lines for damage like cracks/leaks that compromise system integrity.
– Have brake inspection done periodically by professional technicians to catch minor problems early.
Conclusion
As modern vehicles pack more power and safety gear than ever before, engineers leave no stone unturned to develop even safer and stronger braking systems. By understanding how brake systems work and diligently maintaining components, drivers can maximize their vehicle’s stopping capability for negotiating roads safely. Ultimately, it is our individual responsibility to keep our brakes in top working order.
